Motorola 2N5160 PNP RF Transistors: new-old-stock, medium old stock, fake stock?

Leave a comment

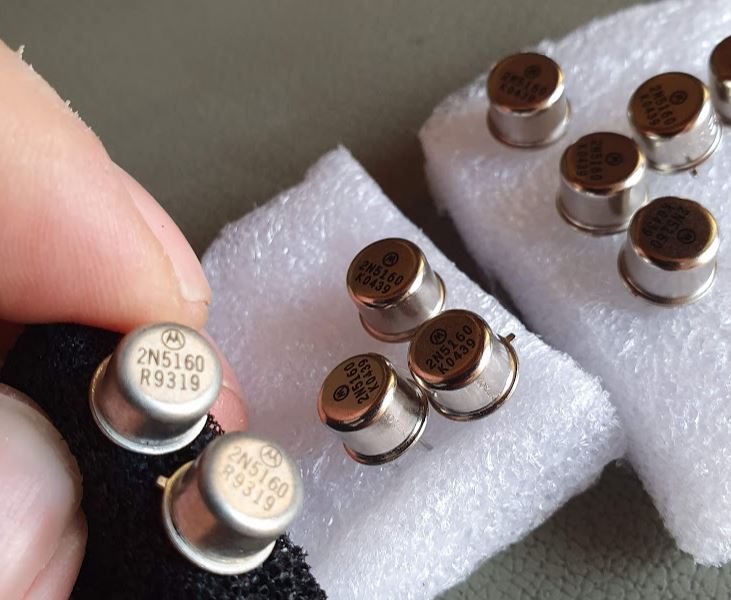

Some of the 1980s, 1990s pulse and signal generators use push-pull power amp stages to provide output levels of +-10 V into 50 Ohms, and similar. These are often discrete circuits, utilizing PNP-NPN small power transistors. While the NPN types are still widely available, there used to be some shortages of 2N5160 PNP transistors. Recently, there are are many offers for “Motorola” branded parts, with datecodes from about 1998 (K98xx) to about 2004 (K04xx). In contrast to the earlier Motorola parts (Rxxxx date codes), these have shiny cases. It is quite unlikely that Motorola actually manufactured RF metal can transistors in 2004… (1999 onwards, Motorola no longer made transistors, but transferred the business to ON Semiconductors).

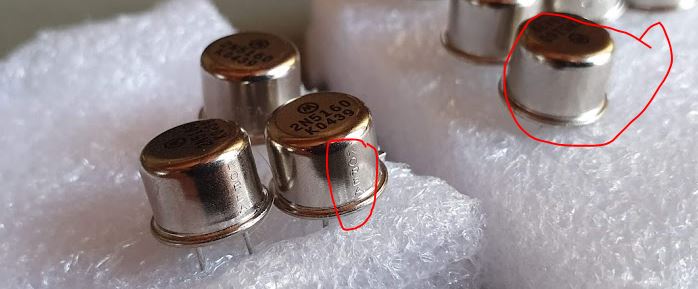

Strangely, the cans have “KOREAN” stamped into them, in various styles and sizes. Would a fake producer have stock of many different kinds of fake cans? Or did ON Semi produce these parts with some existing stock from the 1990s? Many semiconductor producers actually have decade old wafers in stock that they package whenever there is a need.

Let’s have a closer study. Unfortunately, no electron microscope here. But we do our best. Here the die of the defective HP branded original Motorola part. Red arrow shows the burn mark, defect area.

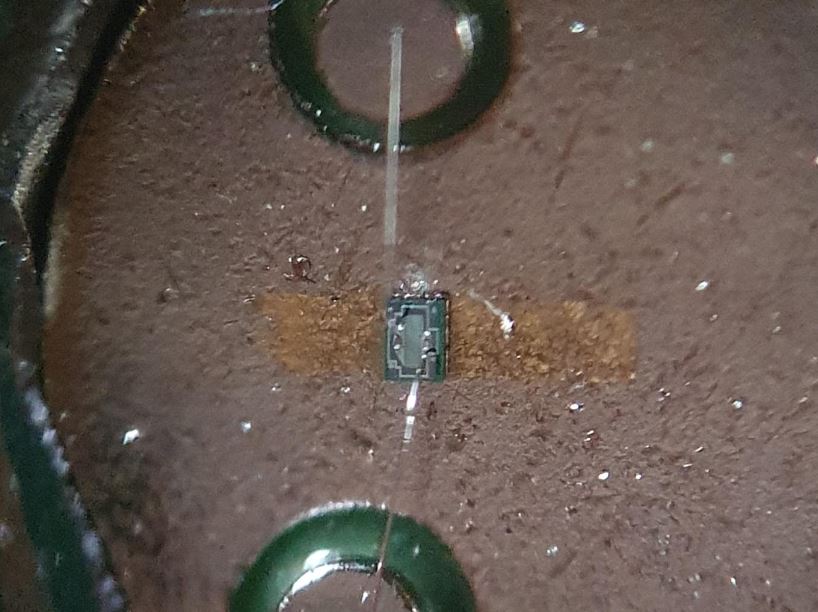

I sacrificed one of the 0.7 USD suspicious parts with K0439 datecode. To my great surprise, they are exactly identical in die, bonding method, and die attachment method.

A quick function test – put the new K0439 date code 2N5190 into an 5 MHz power amplifier. And working just great at >20 dB gain and about 1 Watt output.

Further, we study the collector-base capacitance, at -28 Volts bias U_CB (note that some datasheets specify “28 Volts U_CB” but this won’t work with a PNP transistor – it is conducting like a diode in C-B, if the collector is positive vs. base).

A test with the trusty HP 4192A, and 2.5 pF measures. Exactly the typical value. Also checked one of the certainly genuine Rxxxx date code transistors, and this measured at about 2.7 pF.

Test done at 1 MHz, and calibrated the 4192A with open and short.

So far, so good. All I can say is that these transistors are good 2N5160, whoever made them.

Various

A low frequency xtal oscillator: Austrian generosity, gold, and crystals

Leave a comment

A while ago, an Austrian fellow contacted me for some collectibles, long-range telephone line filters (from carrier multiplex phone lines). Many decades ago, phone lines were used at some 50-100 kHz frequencies, to transmit several (!) calls per wire pair. This required good filter, quartz filters were commonly used.

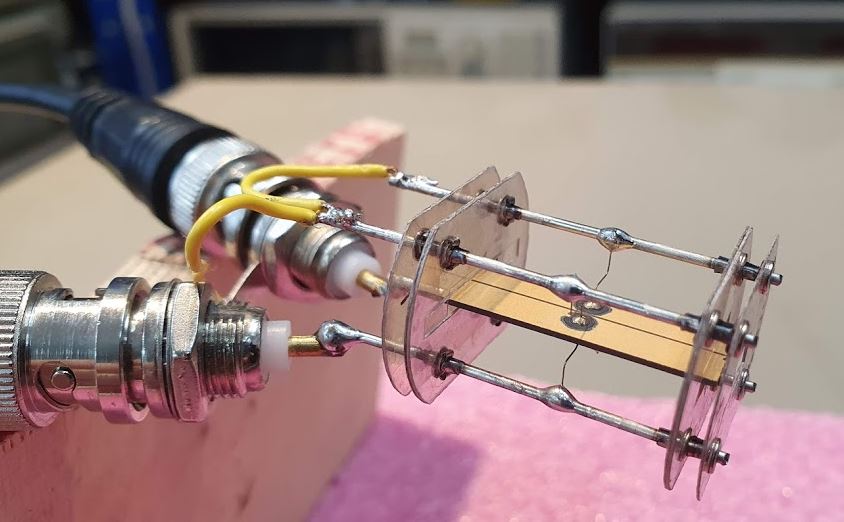

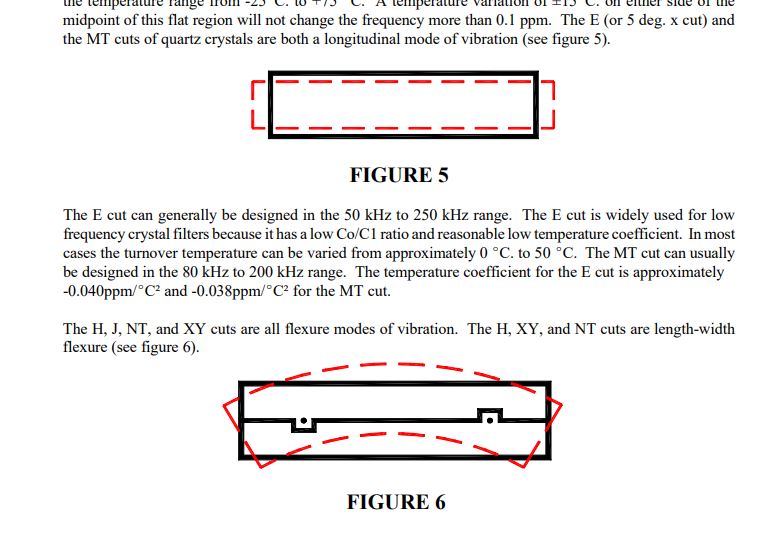

These are 4-electrode filters that are held only by 4 wires soldered to it. Probably oscillating in some flexing mode.

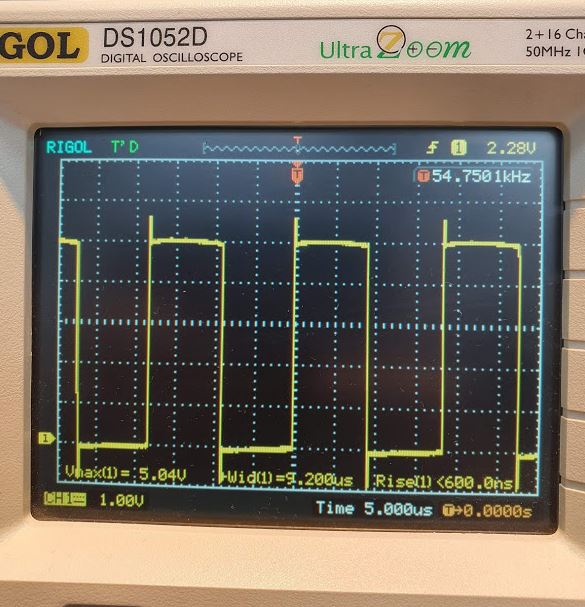

The electrodes are normally connected diagonally, and with a few resistors and an amplifier, I got the part to oscillate nicely. Be aware that you can’t feed a lot of power to these crystals, so it needs a rather high impedance oscillator circuit.

Resonance is at about 50 kHz.

Also connected the specimen to a HP 3562A analyzer, in swept frequency mode, and good nice response plots. There is another dip at 100 kHz!

The schematic, pretty simple, using a 74HCU04 unbuffered inverter, it is a very handy circuit, and years ago I got several tubes of these… you may use any other type of amplifier, gate, or even transistor circuit to get any such xtal oscillating.

Also did some some study on the temperature effect – heated to 100 degC, the frequency dropped by 200 Hz!

Various

HP 8753C Network Analyzer: a new old YTO, and a new old firmware

Leave a comment

After another trip to Germany, another HP 8753C to fix. This unit had option 020, 006, a 6 GHz unit, but there is no 6 GHz test set.

First, we need to get a suitable YTO, found a good ASF-8751M, from Israel. Cleaned it up and gave it a proper test.

It is a 4-8 GHz unit, but I easily got good power down to necessary 3.6 GHz. It is a well-behaved unit, with reasonable power consumption running of +15 and -5 Volts. The heater may be better run with 24 Volts, but there is only 15 Volts in the 8753C, and it is good enough it seems.

Some modification of the PLL board, as described before, to approximately double the tuning current, installed a 20 Ohms sense resistor, and installed a BD249C transistor on a good heatsink.

A quick drawing of the heatsink, should you need it. Use 1 mm aluminum sheet. Don’t cut yourself, when cutting the metal!

The YTO, installed in the veritable source assembly. Pretty confident that this will last for a while.

This time, all worked well and the pretune correction functioned immediately, no further adjustments needed. Phase lock seems very stable at all frequencies, scan rates, and band transitions.

Out of curiosity, did a phase noise test of the 8753C in CW mode (fixed frequency mode), getting well below 100 dBc. Pretty good. Maybe better than the original YTO.

For the current unit, I also wanted to update the firmware, and install the 010 option (time domain analysis). The option installation (and EEPROM backup), done like described in an earlier post, but desoldering the EEPROM, and changing three bytes…

The unit is still running pretty old firmware.

Should be easy enough to program some 27010 EPROMs, but the devil is in the detail. After a number of incorrectly programmed EPROM, finally figured out the once of the CD4015 CMOS of the EPROMMER had failed! Fortunately, I had some in stock to fix it.

After these efforts, the 8753C is starting up with the latest (albeit, dated) firmware, and all options.

A few tests with filters and such, a very useful and well working unit. The CRT also very good, no need to install a LCD.

Various

HP 3325B Synthesizer/Function Generator: a quick fix, and a hot transistor

4 Comments

Recently, I got a defective HP 3325B, it is a very useful generator even for today’s standard. It features some highly linear ramps, has great frequency resolution and a powerful output (10 Volts p-p into 50 Ohm). This unit reportedly had major issues, no output, and failures with startup. So even before switching it on, I removed the panels to check. Nothing obvious at first glance.

After a quick power on, some smell from the output section, and clearly, there are some burned resistors, and one of the power stage transistor is terribly hot, so hot that the solder melts… don’t burn you fingers!

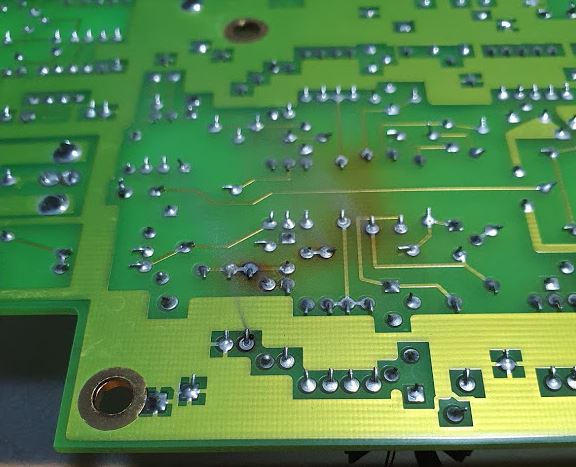

Removed the board altogether (take care not to damage the connection flat cables!), and even the solder had some spray by heat effect, so I cleaned the area well.

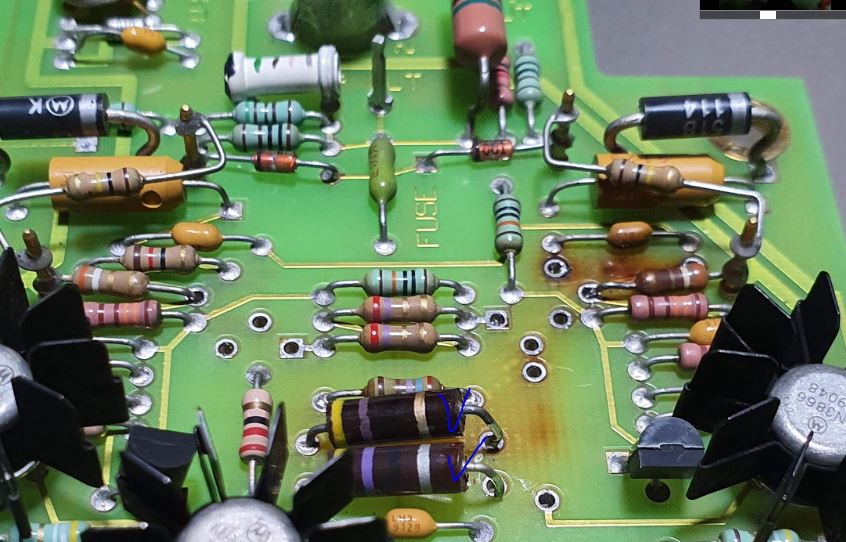

To get access to the resistors, and to also do a proper test, all the transistors in the area were removed, and the transistors desoldered. All cleaned up pretty well, the board seems to be of good quality.

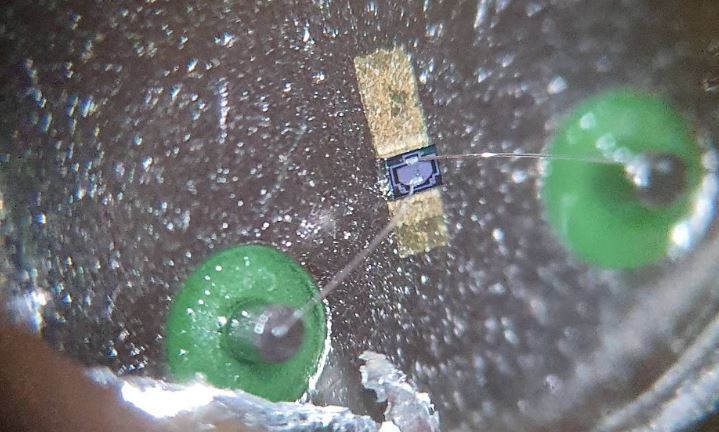

The 3-440 transistor aka 1853-0440, cut open. It has a tiny chip, difficult to see the damage with my means, but it is shorted to base.

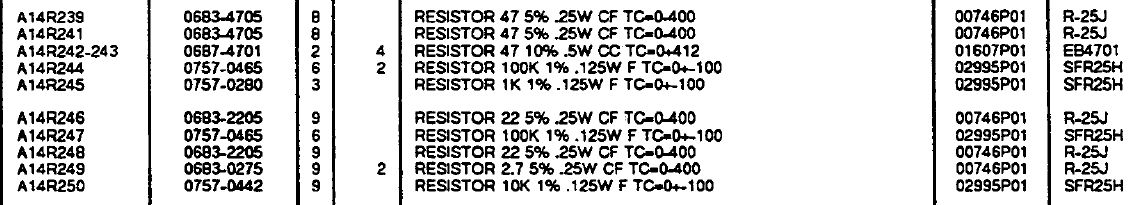

The resistors, the only issue is a slightly discolored 47 Ohms carbon composition resistor, part EB4701, a 0.5, 10% tolerance resistor. Quite expensive to get, and the part, despite some signs of heat, tested good and within tolerance. So I decided not to replace this transistor, because it has an effect on the high frequency performance of the circuit.

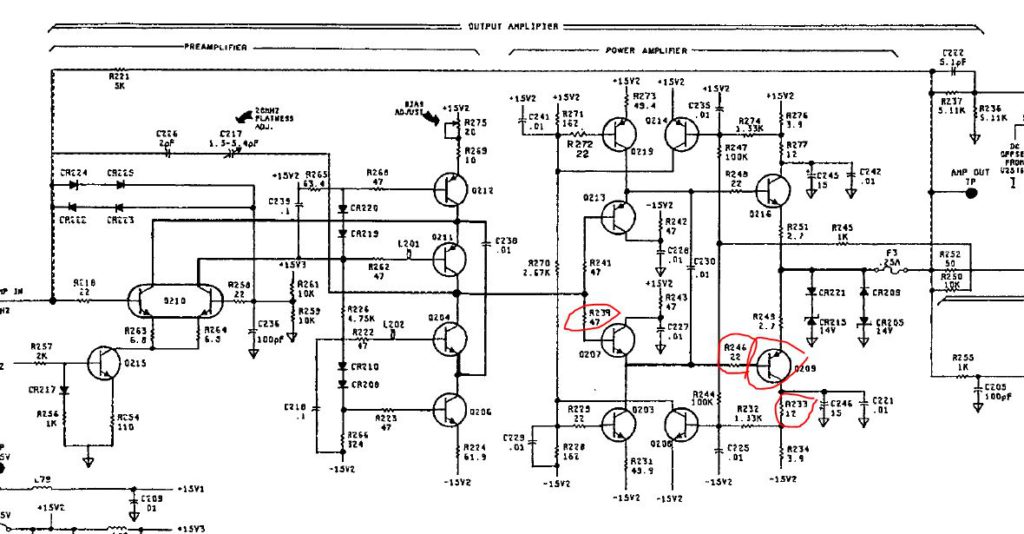

The power amp, it is a marvelous push-pull design. It relies on complimentary NPN-PNP transistors that have high frequency power.

Nowadays, the PNP RF transistors of this sort are rare, probably they even were rare and expensive during their time.

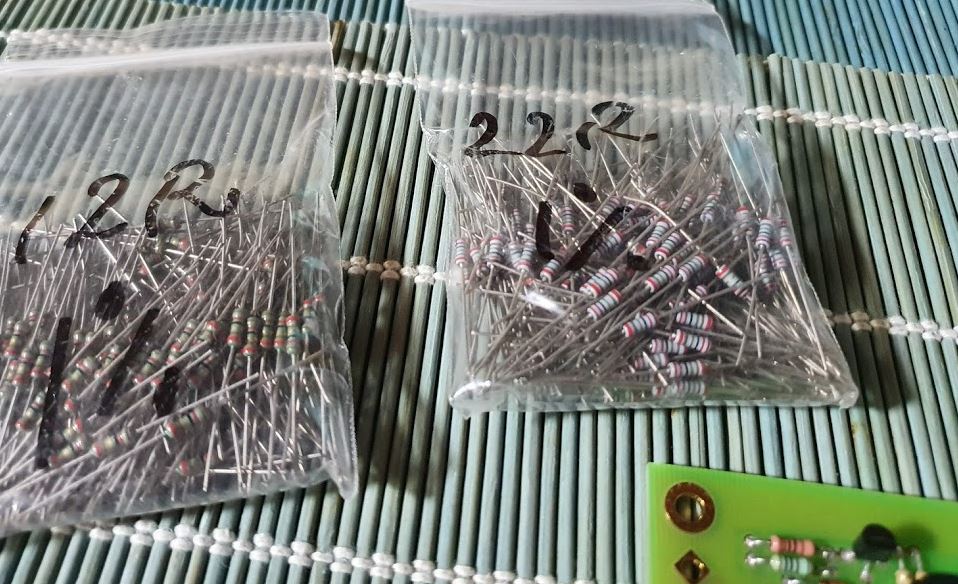

The damaged resistors, fortunately, after a good amount of searching, I found the bags here in by temporary Japanese workshop.

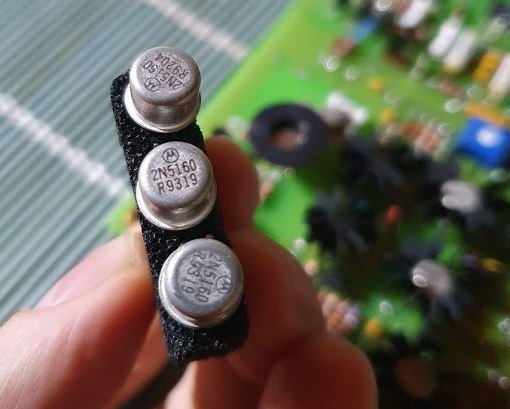

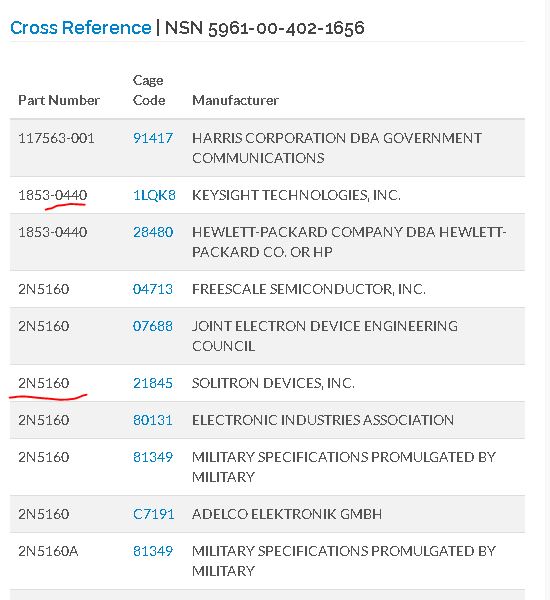

The transistors, these 3-440 are equivalent to the 2N5160, and I happened to have 3 of these back in Germany, new old stock. Purchased them some years back, because they are generally not easy to get.

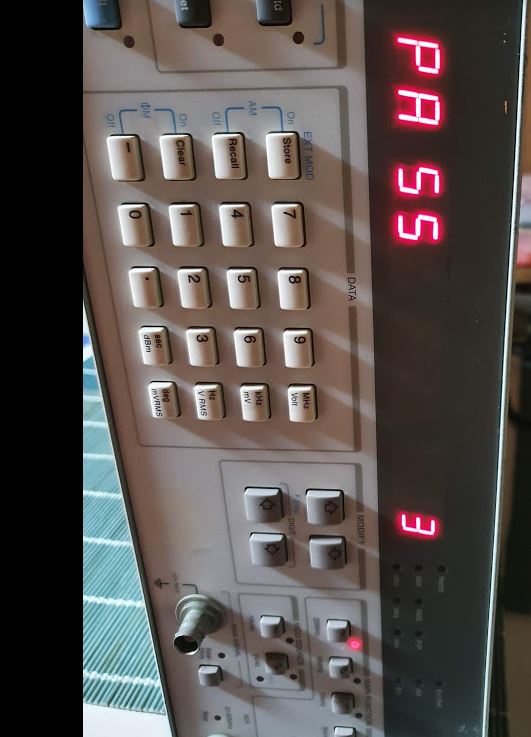

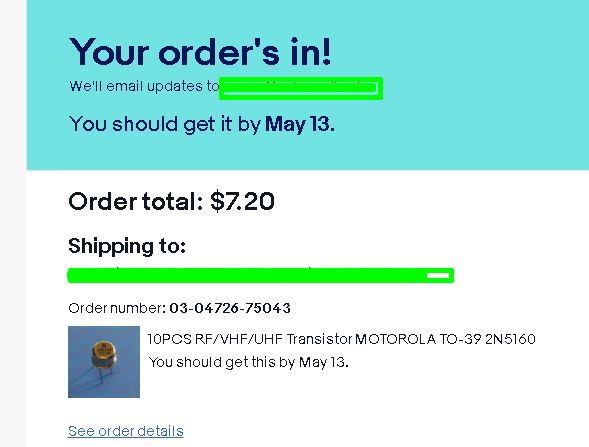

After these replacements, I run the adjustments and performance checks as per service manual, with no trouble at all. Also the self test passes flawlessly. We can call the generator fixed.
