Homemade Hard Candy: sugar free extra-strong eucalypt-menthol

2014/12/24 Simon Leave a comment

In winter time, nothing better than some low-calorie, strongly flavored candy. It works against germs, improves general health and well-being, and preparing such candy yourself is fun, and you can make them ‘extra-strong’.

That’s how it works. First, you need to get some isomalt. Isomalt is a sugar alcohol – much less (about half) of the calories than regular sugar, it doesn’t attack your teeth, and is slowly metabolized by the human body (doesn’t lead to spikes of you blood sugar level). It is sweet, but not quite as sweet as sugar. No metallic after-taste, it is purely sweet. And, it is non-hygroscopic (it will not absorb water when stored), resulting in less sticky mess, and eliminating the need to wrap each and every candy separately.
This makes isomalt a nearly ideal ‘carrier substance’ for any flavor.

Take about 150-200 g of isomalt, and melt in a small cooking pot. Ideally, use an electric stove – don’t overheat! Stirr!

Once everything is molten, pour onto a silicon baking pad, or siliconized/non-stick (lightly oiled – vegetable oil) paper.

Watch out! This is dangerously hot stuff – it can cause severe burns! Keep children away! I always wear a pair of cotton gloves for isolation, and a pair of rubber gloves on top.

Now, the tricky part. Using a metal blade, knife, or similar tool, move the molten isomalt around, outside in, until it is cooling down a bit, and getting more viscous. This requires some practice.

Next, most important step – addition of the flavor.

The flavor – a saturated solution of (-)-Menthol in Eucalyptus oil (this is about a 1:1 ratio). This is best done directly in a pipet bottle, very handy for easy dosing. The active ingredient of Eucalyptus oil, 1,8-Cineol is a really great compound, it kills bacteria of all sorts, and constitutes about 80-85% of the oil.

Menthol –

1,8-Cineol –

The right time to add the flavoring is reached when the viscosity is just about high enough to handle the molten isomalt with your hands (make sure to thoroughly lubricate the gloves with neutral-taste vegetable oil).

The flavoring is put directly on the semi-liquid isomalt, and folded in from the perimeter, to the inside of the melt.

Then, take the candy in your hands, and pull it, fold it, pull it, until it is cool enough to be portioned into candy pieces. Can be a bit hot, but never mind. Once the right temperature/viscosity is reached, timing is everything! Now things have to happen quickly!

Using a strong pair of scissors, with some vegetable oil applied, cut the candy into pieces of adequate size. Rush!

Best use some non-stick paper, and let the candies cool down.

The final step – put them into some nice metal containers for storage. I never store too many in a single container, because they will lose favor more quickly, with a large container being opened all the time to take out a few candies only.

The result of a single batch – you can handle up to 250 g of isomalt in one batch with some practice.

Various

Resistive Power Splitter: trying out a low-cost construction

2014/12/22 Simon Leave a comment

For leveling of signals, or test that require two tracking channels, like tracking insertion loss measurements, a resistive two-element divider is very handy. These are broad-band, and rather robust devices.

One input, two resistors (50 Ohms each), in series with two outputs.

Such devices are available from various suppliers, and cost anywhere from 25 to 300 USD, depending on level of precision and frequency range.

Why not try to build one yourself, with some small 0603 resistors; I used China-made SMA connectors, and 4 pcs of 100 Ohm resistors.

How does it perform? Well, let’s connect to it a network analyzer and try:

Port A through measurement (port B terminated):

Port B through measurement (port A terminated):

Tracking is pretty good, 0.05 dB @2 GHz, 0.15dB @2 GHz.

1.2 input SWR – well, pretty acceptable; might still be able to improve by adding some solder or by changing the length of the pin. Good enough.

Here, some specs of a HP resistive splitter:

DCF77

DCF77 Frequency Reference: a resonably accurate 10 MHz source

2014/12/22 Simon 5 Comments

For those out there that need a good 10 MHz source to calibrate their counters – there is an easy method, at least in Europe – the DCF77 transmitter, near Frankfurt. It uses a 77.5 kHz carrier, which is kept very close to 77.5 kHz, all the time, and puts out about 30 kW of power. The carrier is controlled to within 2*10^-13, way better than I need.

To make use of these waves, I build a little receiver, using a tuned circuit, a FET pre-amp (which is located in a plastic case, several meters away from the bench, to avoid interference.
The 77.5 kHz signal is then converted to a square wave by a limiter circuit, and phase-compared to a 77.5 kHz derived from a 10 MHz OCXO. For the OCXO, I used a Piezo brand Model 2920136, but any reasonably good 10 MHz OCXO will do.

No need to go to a rubidium oscillator, which will only consume a lot of power and wear out over the years.

The amplified signal is also available at a rear BNC connector, for troubleshooting, and to find the best spot for the antenna (just connect a scope and align antenna orientation/place for best amplitude).

The tricky part – deriving a 77.5 KHz signal from a 10 MHz source. This requires a fractional divider. First, the 10 MHz signal is divided down to 310 kHz (4x 77.5 kHz), followed by two :2 dividers (74F74 flip-flops). This will give fast transitions, and exact 50:50 duty cycle.

The 10 MHz to 310 kHz divider is implemented using an ATMega8515 (you can use any other microcontroller that can handle a 10 MHz clock). The program does a simple trick – it generates 31 transitions for any 1000 clocks; and it does this with reasonably well distributed jitter.
7 blocks, with 33-32-32-32 cycles; and 1 block with 33-32-32 cycles; in total: 23 sequences with 32 cycles, and 8 sequences with 33 cycles – a total of 1000 cycles over 31 sequences. I am so glad that microcontrollers exist, this would have taken quite a few TTL circuits to realize this hard-wired.

dcf77r_p.c AVR GCC file

The PLL, build around a 4046 has a long time constant, several minutes, however, you could improve the frequency stability by using a constant of several hours – which is not quite practical, and also not necessary, for the given purpose (to provide a reference that is accurate and stable to better than 1 ppm, and that has a phase stability of better than a few microseconds).

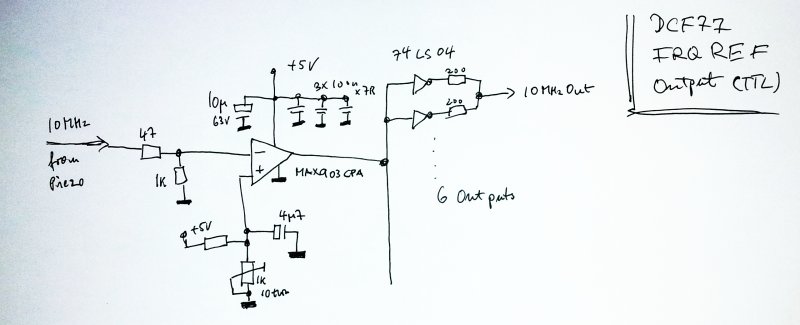

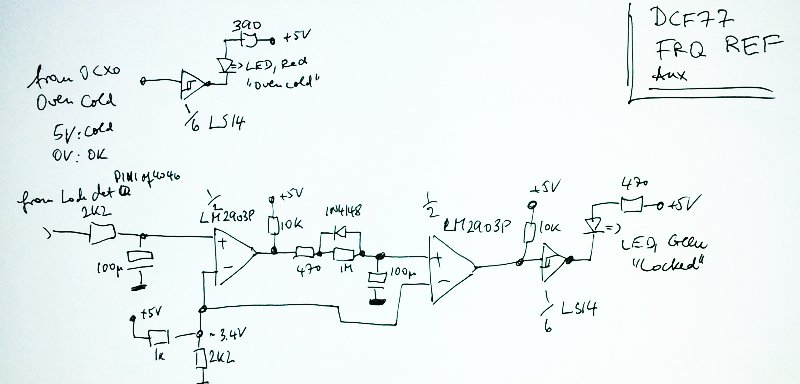

Some auxilliary circuits, for the lock detector, and the outputs. Outputs are TTL, but you can also add some transformers, resonant circuits, etc., in case you need other signals. I found these TTL signal very suitable to lock all kinds of test equipment, and never had any issues with ground loops so far. If you do phase noise measurements, I would recommend to use a local Rb reference anyway, or a free-running precision/low noise OCXO, not the output of this device.

Note the shielding of the input circuit, using some copper clad board. A bit curde but works.

The thing, put into a nice box:

After some days of monitoring the output phase vs. a GPS-adjusted Rb oscillator – the device is working just fine. There are some phase fluctuations, most likely, due to the propagation of the 77.5 kHz waves, and these cause phase shifts of about 1 µs. Well, just temporary shifts, and by all means good enough to calibrate any OCXO to full resolution.

Why not use a GPS disciplined oscillator, or a Rb oscillator? Well, the GPS signal, who knows when they will shut it down; and it needs a rather facy antenna, and, you can’t build it from scratch (well, you can, but would be a major effort!). Why not a Rb oscillator, well, I actually have a good Rb, but rarely use it, because it needs so much power, and way too accurate for the general tasks at hand – rather have the DCF77 running, which only needs very little power and generates no heat; and, the OCXO won’t wear out so soon!

Various

Oscillator Driver/PLL: tuning fork oscillator

2014/12/21 Simon Leave a comment

Recently, a “very special” circuit had to be designed – a driver for a mechanical oscillator. The objective – to find the natural frequency of such oscillators, to a very high degree of precision, and at very small amplitudes, in the µm range.
Measurement of the frequency is easily done by a frequency counter – what is needed is a circuit that keeps the oscillator going at a constant amplitude.

The oscillator (a mechanical tuning fork, metal tube) carries a small magnet that can be used, together with a stationary coil, to make is oscillate and sustain the oscillation.
The movement of the tuning fork is sensed by a light gate – an IR emitter diode, and a photodiode.

The oscillator is running at a few 100 Hz, in a very well thermostated environment.

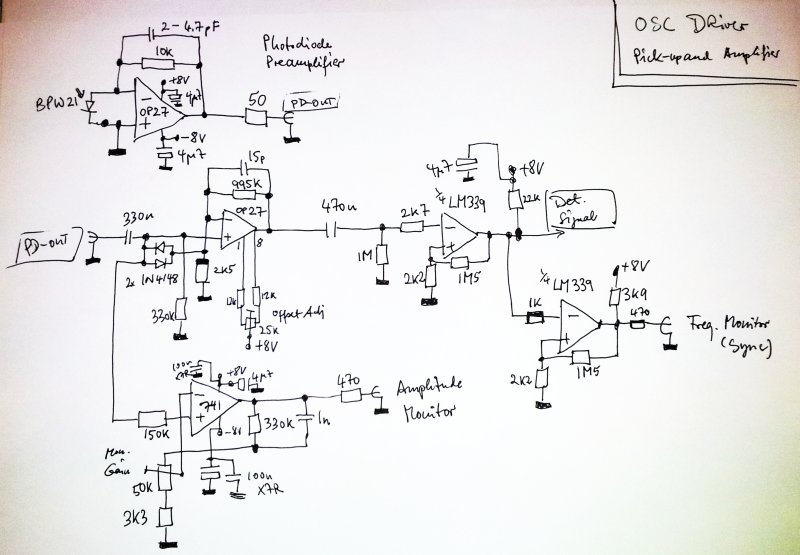

First part, the photodiode amplifier, and signal conditioning circuits.

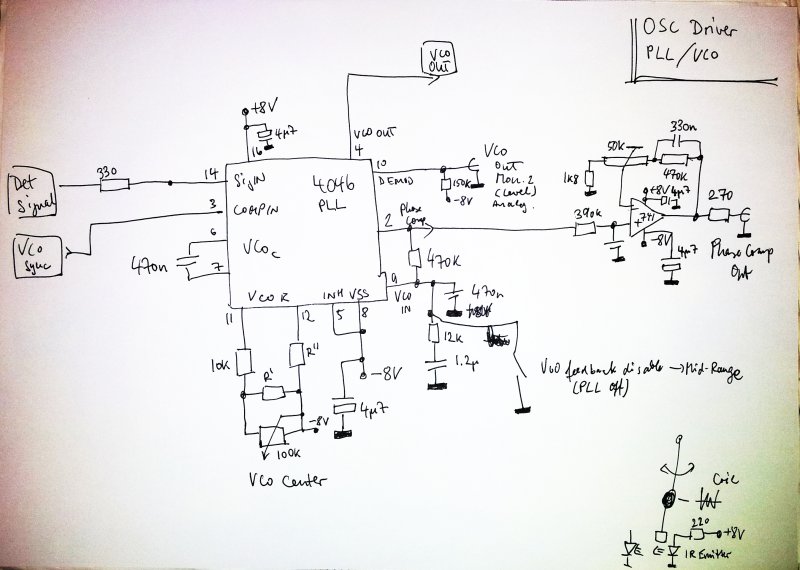

The second part, the PLL (a classic 4046), and some auxiliary circuitry to provide monitor outputs.

For operation at other frequencies – adjust the VCO timing capacitor, or use an external VCO.

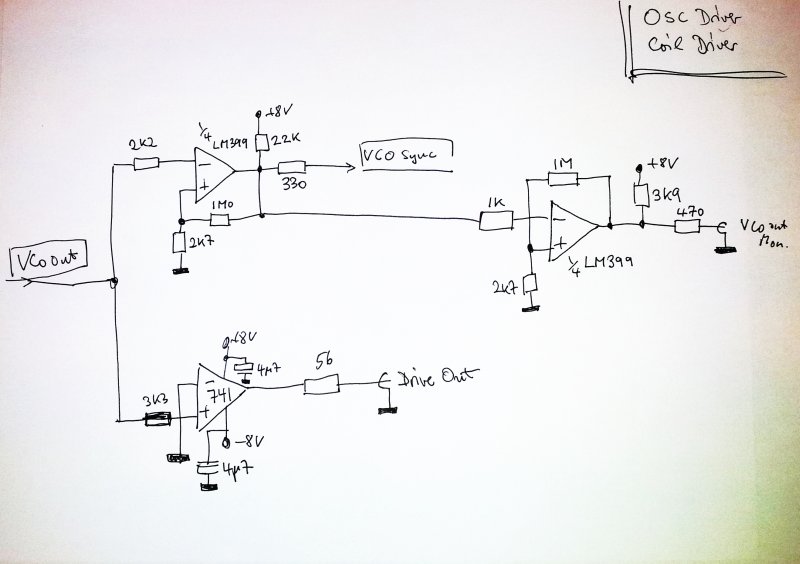

The coil driver – and monitor driver, this is a very low power systems, a few milliamps are plenty for the coil.

Various

Tesla/Voltcraft BK127C Power Supply: a trusty fellow

2014/12/21 Simon Leave a comment

One of the first pieces of electronic equipment I have ever owned, maybe the very first, a 0-20 V power supply, 1 A max. current. Made for Voltcraft (brand of the “Conrad” electronic mail-order company, popular in Germany), by Tesla, “Czechoslovakia”.

In the mean time, I have 3 of these, and despite the “1 Amp” limit, these are very useful supplies, and there are hardly any circuits that need more than 1 Amp. The output is reasonably low-noise – very similar to other DC supplies or power packs.

Build quality is very sturdy, folded steel – and a basic but very reliable circuit, designed around a uA723.

Years ago, I had one of the supplies fail on me, when powering a high voltage circuit – this caused the power transistor, a KD606, to fail. Replaced it with a BD317 – working perfectly fine.

The manual – sorry, in German only.
tesla bk127c pwr supply

Miscellaneous

Braided Bread: German “Hefezopf”

2014/12/21 Simon Leave a comment

One of the staple foods, at least in the southern part of Germany: Hefezopf – a type of braided bread made with yeast (rather than baking powder), which is sweet but not too sweet – still goes well with eggs, pickles, smoked meet, just give it a try!

To prepare, follow these instructions:

(1) Let 1 kg of wheet flour (general purpose non-bleached flour is prefered), 2 eggs, 125 g of butter warm up to room temperature. If there is no time to let the butter warm up – just cut into small pieces and add to the heated milk later.

(2) Take the 1 kg of flour and put into a large plastic bowl. Using a spoon, make a little hole and add 25 g of yeast (half a standard cube of fresh yeast; add 1 tablespoon of sugar). Alternatively, thoroughly mix with 1 bag of active dry yeast. No need to add too much yeast!

(3) Take 480 mL (about 480 g) of milk and heat to a warm temperature. It should be warm to hot, not just lukewarm.

(4) If fresh yeast is used, add some of the milk, like half a cup, to the yeast and stirr to form a semi-liquid starter; cover with some flour and let sit for 15 minutes to activate the yeast. Skip this step if active dry yeast is used.

(5) Add 125 g of butter, 160 g of sugar, 1/4 tablespoon of salt, 2 eggs and the remaining milk to the bowl. Mix thoroughly, knead for for a few minutes; best done by hand. Add a bit of milk (or warm water) if dough is too stiff. Dough should be rather soft.

(6) Cover with a towel and let rise for about 60 minutes. Avoid air drafts – keep at a warm place. Dough should rise to about double its size.

(7) Knead properly, add a bit of flour if needed.

(8) Split into 4 equal sized strands, and form braided bread.

(9) Pre-heat oven to 165°C, circulating hot air type oven; 180°C, regular oven.

(10) Let braided bread rise for about 15-20 minutes. If golden crust is preferred, cover with a mixture of egg yolk and water (1:1).

(11) Bake for about 30-35 minutes.

(12) Let cool. Don’t cut while still hot!

Not the most beautiful braiding, but, delicious:

Note: this type of braided bread is ideally suited for freezing – just put in plastic bag. For best taste, don’t store for more than 6 months.

High Voltage Power Supplies

Regulated High Voltage Power Supply: Switchmode control, 30 kV, about 1 mA

2014/12/08 Simon 12 Comments

Disclaimer: This circuit description is for your information only. Do not attempt to duplicate! Danger! High voltages can kill you!

For many purposes, a regulated high voltage supply can be very handy. Purchasing one is not easy because such supplies are in high demand by all hobbyists that love sparks, and used units are quite expensive.
Fortunately, high voltage transformers are much more commonly available, from TV sets, so-called “Flyback” transformers. These provide, depending on type, up to 30 kV of DC voltage, at a pretty decent power of about 20-30 Watts.

Quite a few circuits are around, to provide drive signals for flybacks. These work, but often only for a short time – after a few sparks, the driver stage transistor blows. And, most of them have no means of adequately controlling the voltage.

Control of the high voltage typically requires measurement of the high voltage, a task that is not easily implemented – requiring expensive and bulky divider resistors.

The circuit described here is time-proven, and eliminates many of these shortcomings.

(1) Snubber networks around the coil and switching MOS-FET eliminate spikes in case of a shorted output (sparks act like shorts on the output).

(2) The primary winding – it is of very low inductance, just a few turns. This makes it easier to control the voltage spikes on the primary, and allows low voltage drive circuits (much reduced risk of electric shock, much better for amateur use). Still this circuit is dangerous! Do not attempt to replicate!

(3) Switchmode regulation with current limit – also this provides added protection against overload. Dead-time control limits the maximum duty cycle (power).

The design, all build around a real classic, a TL494 switchmode regulator.

Power is supplied via mains filter, and two transformers. Second transformer is only a needed for the LCD panel meter (Voltage display in kV). Note that the regulator and primary coil is on a floating ground. Earth ground is used for the high voltage coil, with a 1 mA full scale amp meter. Actual output current can be above 1 mA, depite the caption “0.5 mA”. Make sure to adjust the maximum current conservatively, and also the dead time, to keep the output power limited – otherwise, the flyback transformer will suffer and eventually stop working.

The most interesting part, the flyback driver and snubber circuits. The snubber circuits were designed with a lot of effort, using a scope to probe the overshoot voltages, etc. – if you change the flyback or primary inductance, make sure the check proper dampening! The BY329-1200 is a fast diode, with rather slow (soft) recovery. This will lead so some extra power losses, but this can be tolerated here. The VDRs add some more protection, but actually, they were added more for peace-of-mind than for any real purpose.
One thing to be improved in further design updates is the gate drive: the gate to source voltage is currently the full voltage of (about 24 Volts), it works, but it is running close to the limit of the IRFP450 device, or even above the limit. Furture circuits will include an independent linear regulator, to run the TL494 from a 15 V supply, derived from the main supply, and maybe a Zener diode added to the gate drive signal path, for added protection agains gate voltage excursions.

The IFRP450 is driven rather hard, via a 47 Ohm gate resistor, and has very small switching losses. No heatsink required, mounting it to the rear panel will provide ample heat dissipation.

The flyback itself, a 0100170 equivalent to HR 8409 type. The only coils used are the secondaries. The high voltage coils, for the output, and the 11-12 coil, for the voltage feedback. The voltage derived from this coil by half-wave rectification is a very accurate representation of the high voltage output. This has been checked at multiple voltages and load conditions!
The primary winding is 8-1/2 turns of rather heavy copper wire. You can also twist multiple thinner wires, if no thick wire is handy. I used double-isolated type; the device below is just a lab demonstrator for personal use, for professional cirucits, it is suggested to use PTFE (Teflon) or silicon tubing to provide additional isolation of the primary winding from the ferrite core.

Keep your fingers (and other wires) off the other primary windings!! These carry dangerously high voltages, at significant power, and might be more dangerous than the acutal high voltage secondary!

The actual unit:

The rear panel has the high voltage output: a big isolator, machined from HDPE plastics, with a 4 mm receptacle hidden inside.

Stepper/Multiphase Motor Control

Stepper and Multi-phase Motor Control: LMD18245 based driver

2014/12/06 Simon Leave a comment

For quite a few projects, I need to control DC, stepper or similar motors, with moderate power, anywhere from 0.5 to 2 Amps. For smaller motors, I have a well-established circuit using ULN drivers (to be described elsewhere), and for powerful motors, I generally use the reasonably inexpensive Leadshine or Leadshine-compatible controls – but for the intermediate range, below circuit has provided great service in many applications over the years.
Mostly, it is used together with bipolar stepper motors, like, in a big engraving machine build about 10 years ago. Recently, I re-used the design to control a rather uncommon 3-phase stepper motor.

The original prototype:

The key part is a LMD18245 from National, now, Texas Instruments, about USD 10 per piece. This is a full H bridge, with 4-bit DAC current control, integrated diodes, and utilizing DMOS technology. It is working up to about 3 Amps, 50 Volts; and has overcurrent/overtemperature protection. Not bad, and it allows for very small designs, without going to the trouble of thermal engineering of power SMD components used in more recent designs (and reliability issues, if such design is not properly done).

The LMD18245 uses a remarkable current sensing technique – the main DMOS switches are made up of about 4000 elements, and only one of these is used, along with a current sense amplifier, to provide a 4000:1 scaled version (250 µA per Amp) of the coil current. This eliminates the need of heavy/expensive low-ohm low-inductance resistors.

To protect the circuit, two capacitors are used – a 1 µF film capacitor, close to the VCC input of the LMD18245, and a 470 µF electrolytic (1 for each pair of phases).

The digital interface is very simple, and has been used in assemblies of multiple motors/multiple phases with success. The data bus input is buffered by 74LS374 edge-triggered D-flip-flops. Many units can be connected to a common bus, using a ribbon cable, and solder bridges for the address (LS374 clock) lines.

Typically, these are set by a micro-processor, using a look-up table (if MCU pin number is limited, a shift register, 74LS164 or similar, can be used instead). This allows full control of magnitude of current (4-bit DAC), and direction (via H bridge).

Judging from experience, the LMD18245 is a very robust device that can be employed of all kinds of motor control, in particular, if you need a easy to implement, but still fully customizable, reliable solution.

Miscellaneous

FKM349VL Benchtop Mill: control, EMC2 LinuxCNC interface

2014/12/06 Simon 2 Comments

The FKM349VL is one of many similar benchtop mills, Made in China. It’s size and power requirements make it quite suitable if you need a small machine that is still capable of machining aluminum alloy, and to some degree, even steel.

General characteristics – X travel = 490 mm, Y travel = 160 mm, Z travel = about 330 mm.
Table size is 700×180 mm

Spindle is MK3 with M12 draw-bar (this is the most significant limitation – only manual tool change!).

The linear stages use 16 mm, 4 mm pitch ball screws. Motors are 4.5 Nm, 6 Amp nominal. These are quite powerful, plenty of torque for this machine. This allows velocities of about 1800-2200 mm/min with no steps lost.

The control electronics are all housed in a cabinet attached to the machine. All pretty nicely made (motors powered by roughly 50 VDC, from the toroidal transformer; the blue transformer provides 12 VDC for the control circuits):

The stepper drivers – Leadshine units, up to about 5.5 Amps, configured for 4.3 Amp peak, 3.1 Amp RMS. Type MD556, V2.5. The units are similar to the Leadshine M542 and M752 units. Aka, KL-5056, aka, Rhino RMCS-1102 – many similar units exist.
The stepper motors have 200 steps/rev; the drivers are configured for 8 microsteps per full step – this results in 1600 steps per rev.

By default, this machine came with a “CNC-Workbench” CNC controller, offered by W+W Automatisierung (www.ib-weigelt.de). I gave it a try but soon found out that it is not up to my requirements; it’s a nice little controller, for what it is, no complaints, but really only for very basic uses, and difficult to interface with other CAD/CAM software. Most of my other machinery either uses industrial control, or EMC2 (LinuxCNC), so the decision was soon made to adapt the control to EMC2.

EMC2 has a powerful hardware layer, using the parallel port for control input and output. To allow proper speed and noise immunity (very important if you don’t want to run into issues!), a little interface circuit was fabricated, on a piece of perf board:

Nothing too fancy – low pass filter, Schmitt trigger, LED driver (the stepper driver use optocoupler inputs). The limit switches are combined by diode OR connections, switches are normally closed – to prevent machine damage in case of a broken wire.

The internal interface of the machine, originally used by the “CNC-workbench” controller uses a pretty uncommon high density D-SUB connector – 44 pins!

First time I have seen this type of connector, but it offers a fair number of contacts, for a pretty reasonable price, and quite a bit of soldering effort!

The software implementation – let me know in case you need the EMC2 HAL files for reference. Also attached a little incremental encoder as a “handwheel”, using a second parallel port. Quite amazing what you can do with a second hand computer, a few parts, and free software!

Micro-Tel MSR-904A Microwave Receiver

Anodizing 7075 Alloy: Micro-Tel handles

2014/12/02 Simon Leave a comment

Quite a few good tutorials exist for anodizing of aluminum, and pretty decent results can be achieved in any home shop equipped with a a sink and a few chemicals. For good results, with all the basic items mastered, the most critical item is the aluminum alloy. Generally speaking, any type of pure aluminum, and Al-Mg alloys are very much suitable for the anodization process. Zn, Si, Mn (and to some extend, Cu containing) alloys don’t work well.

The handles for the Micro-Tel MSR-904A receiver were machined from 7075 alloy, because of its strenght, and availability. 7075 has about 6% Zn, and 1.5% Cu, both of these elements are known to cause trouble when anodized. However, one can still try.

A quick, step-wise description of the process:

Step (1) – throughly clean/degrease the workpiece: first, I use methylated spirits, then, hot water and detergent, then rinse with water. Wear clean gloves.

Step (2) – etch with about 10% caustic soda. Room temperature.

As you can see, the part will turn black. This is typical for certain alloys.

Step (3) – use about 5% nitric acid to remove the black layer. Dip for a few minutes only. There will be some faint grey residue which needs to be brushed of mechanically (use a very clean brush – otherwise, it will contaminate the surface). Had to repeat the caustic etch twice to get a uniform and shiny surface.

Step (4) – anodize. Mount the piece with heavy aluminum wire. For 7075 alloy, pure aluminum wire works. Alternatively, use thick titanium wire. Current needed is about 1.5-2.0 Amps per 100 cm2. I used 2 A, for the handle. As cathode, use a sheet of aluminum, lead, or titanium. I use just plain aluminum and it is working just fine. For the liquid, about 15-20% sulfuric acid (dilute 37% battery acid with destilled water 1:1 ratio). Keep at room temperature, cool with some ice (applied to the outside) if it heats up too much. Typical time needed is 30-60 minutes, depending on the temperature and layer thickness. Don’t let the acid heat up too much – the layer will stop growing.

Step (5) – densify by boiling in distilled water. Needs to be really boiling, not just hot!

After the first attempt – everything looked fine after step 4, but the handles turned pretty dark after densification.

Pretty much, a full failure.

So, etched off the oxide layer with 10% caustic soda, and repeated the process, with two modifications:

(1) Keeping the acid rather warm, about 30°C, and reduced anodizing time to 20 minutes. This will give a thinner layer.

(2) Added a bit of ammonium acetate to the water used for densification. You may also add a very small amount of acetic acid. Keeping the bath slightly acidic prevents darkening during the densification process for Zn/Cu containing alloys.

The final result:

It’s not perfectly silvery color, but a slight yellow-orange color (like lightly colored wood). And the layer is certainly not very thick. But good enough to protect the 7075 alloy from forming corrosion spots over time.
